1. The Drive We Build Around Your Machine

We start a gearbox discussion with the machine task. A motor can produce useful power at a speed that is too high for a feed roller, rotary fixture or transfer device. We use reduction to bring that speed into a workable range while increasing available output torque within the gearbox rating.

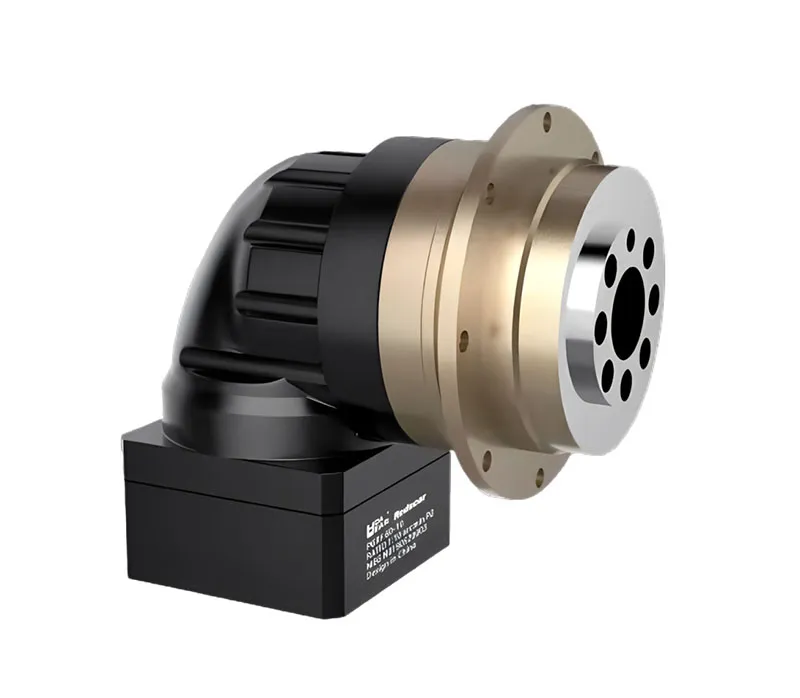

Our PGRF precision helical gear reducer is relevant to industrial automation projects where space, movement and load must be considered together. We focus on compact transmission, smooth running and the backlash requirement of the selected configuration. We connect those features to the actual operating conditions.

For example, we approach a continuously running conveyor differently from a fixture that moves through a short angle and reverses hundreds of times during production. The gearbox may spend little time at its highest speed, yet repeatedly experience demanding acceleration.

We ask customers to describe the working mechanism, including its own bearings and any belts, couplings or other transmission parts. We also need to know where the load acts. A gearbox turning a supported shaft faces different external loading from a gearbox carrying an overhung component.

We separate normal running from unusual loading events. A jam, abrupt stop or repeated contact with a mechanical end position can produce demands that are absent from a steady torque calculation. We ask how the machine limits or detects those events, then review the proposed gearbox against the relevant loading conditions.

Installation deserves the same attention as performance. We review motor clearance, mounting access and the route for cables. If motor direction or a flange connection is important to the layout, we confirm the proposed PGRF drawing before treating the arrangement as suitable.

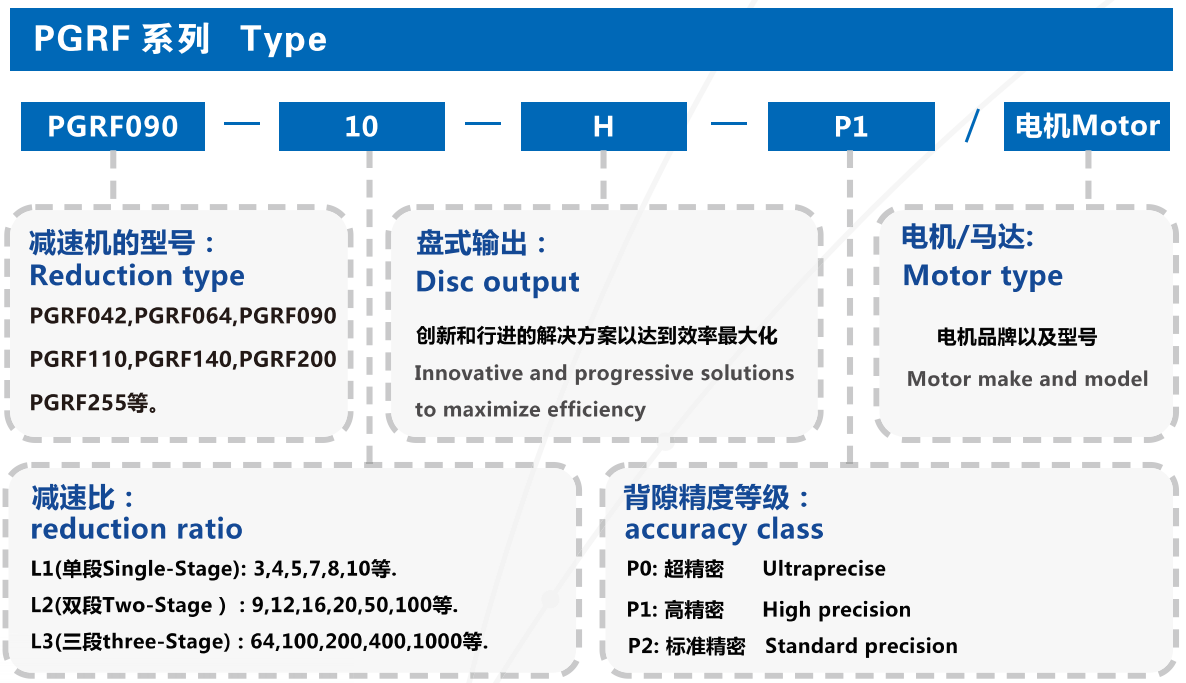

For replacement projects, we request the existing model code and dimensions. We compare the ratio, input connection, output interface and operating requirement. An outside shape that looks familiar does not establish that two reducers will work in the same position.

Our aim is to give your team a drive specification that makes sense at the machine. We want the selected reducer to fit, transmit the required load and support the intended movement without leaving connection details unresolved.

2. How We Balance Output Speed and Torque

We use planetary gearing to obtain reduction in a compact assembly. In a conventional planetary arrangement, a central sun gear works with planet gears and an internal ring gear. The connections between these parts determine the speed relationship.

With helical gearing, the teeth are angled and engagement develops progressively across their width. We use this contact pattern to support smooth transmission. We also account for the axial force associated with helical contact when reviewing bearings and assembly.

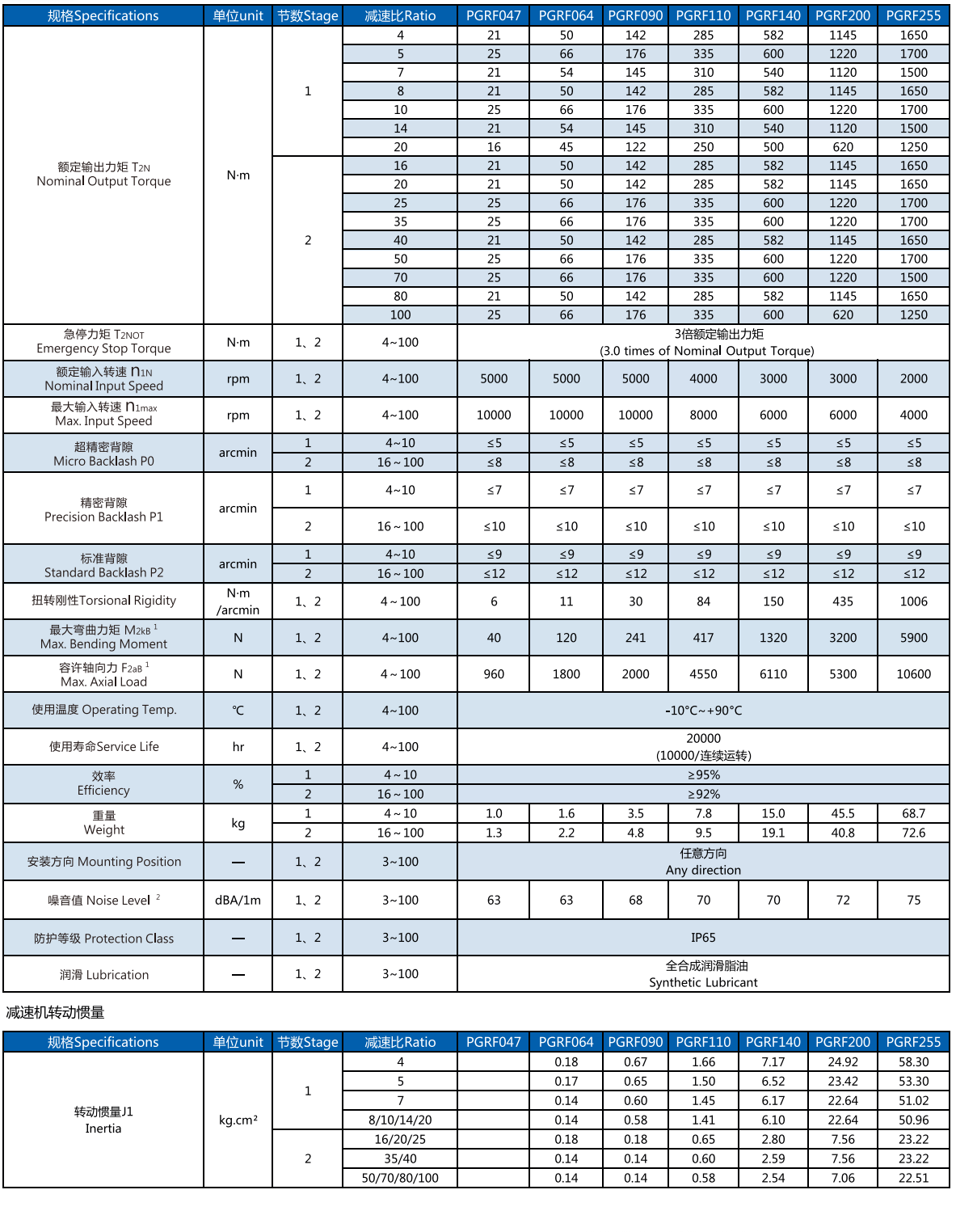

For initial sizing, we calculate output speed by dividing input speed by ratio. We estimate transmitted output torque by multiplying input torque, ratio and efficiency. We then compare the result with the selected gearbox's limits.

Source: our calculations using the relationships in Oriental Motor, Gearhead Selection for Stepper Motors. Assumptions: 2 N·m input torque and 90% total efficiency. These are comparison examples, not PGRF rated torques, measured efficiencies or confirmation of available ratios.

We use this comparison to discuss a tradeoff: higher reduction gives more torque from the assumed input, but lowers output speed. We need a ratio that allows the mechanism to finish its movement in time and still meet the loading requirement.

We also check the motor operating point. The motor must provide the required torque at the proposed speed, not simply show a sufficient maximum torque somewhere on its data sheet. Continuous capability and short-duration capability receive separate attention.

We also compare the required motion with the motor's speed range. Choosing a larger reduction ratio can force the motor to turn faster for the same output movement. We check that operating point before accepting the combination. We want the ratio, motor and available movement time to work together throughout production.

For efficiency and noise, we define the operating conditions. We consider load, speed, temperature and the surrounding machine structure. A quiet unloaded demonstration is useful, but we also want to understand behaviour under the working duty.

3. What Happens When the Production Cycle Gets Faster

We often need to review a drive again when a machine builder shortens the cycle. The load and travel distance may stay the same, while the acceleration time becomes shorter. That can increase torque demand even when the steady running speed changes very little.

We describe inertia as resistance to a change in rotational speed. We include the fixture, carried part and connected rotating components when assessing the load. Reduction changes how output-side inertia appears at the motor, and we include gearbox inertia in the complete review.

For a simple illustration, we can compare three acceleration times while holding inertia and speed change constant. The following values describe only the torque needed to accelerate the stated input-side inertia.

Source: our calculations using torque = inertia × angular acceleration, as explained in OpenStax, University Physics Volume 1, Section 10.7. We assume constant acceleration and convert rpm to radians per second. Values exclude friction and process torque; they are not motor or PGRF ratings.

We can see why movement time belongs in the enquiry. Halving the acceleration time doubles the acceleration torque in this simplified comparison. We still add the torque needed to overcome resistance and perform the working operation.

We ask how often the demanding part of the cycle repeats and whether the load changes between moves. A loaded outward movement followed by an empty return is different from two equally loaded movements. We also check braking and reversal conditions.

For a PGRF helical planetary gearbox used in servo automation, we review these details with the motor and controls requirements. We want enough time for the mechanism to settle before the machine begins its next operation.

We recommend reviewing the selection whenever production speed, tooling mass or movement timing changes. A gearbox that suits the original duty should be checked against a revised cycle rather than assumed to have unlimited spare capacity.

4. Why We Check the Output Connection and Positioning Together

We review the output connection as a loaded part of the assembly. A pulley, fixture or coupling can apply forces that differ from the torque turning the mechanism. We check the direction and position of those forces against the selected configuration.

A simple external moment calculation helps explain the importance of distance. If a perpendicular force acts farther from a reference plane, it creates a larger bending moment about that plane. The example below keeps force constant and changes only the distance.

Source: our statics calculations using moment = perpendicular force × distance in metres, following the moment relationship explained in OpenStax, University Physics Volume 1, Section 10.6. These are external load examples, not permissible PGRF bending moments or bearing reaction calculations.

We use this information when discussing load support. The actual bearing reactions depend on the assembly geometry. We therefore request the load position and support arrangement rather than accepting a force figure without its location.

For positioning, we distinguish backlash from stiffness. Backlash is clearance that may appear when the drive reverses. Stiffness describes resistance to deformation under load. We consider both when a fixture must hold its position while a working force is applied.

We also separate repeatability from absolute accuracy. We may need the mechanism to return consistently to one point, reach a commanded point accurately, or satisfy both requirements. We ask where the measurement is taken and whether the approach direction changes.

When selecting a low backlash planetary gearbox for positioning, we agree on the test load, approach direction, measuring location and temperature condition. That gives us a useful acceptance method for the required movement.

Where feedback measures motor rotation, we discuss the transmission between that measuring point and the load. Clearance, shaft twist and coupling movement remain part of the mechanism. If the machine measures position at the output, we review that arrangement with the customer's controls team so the mechanical specification and feedback method can be considered together.

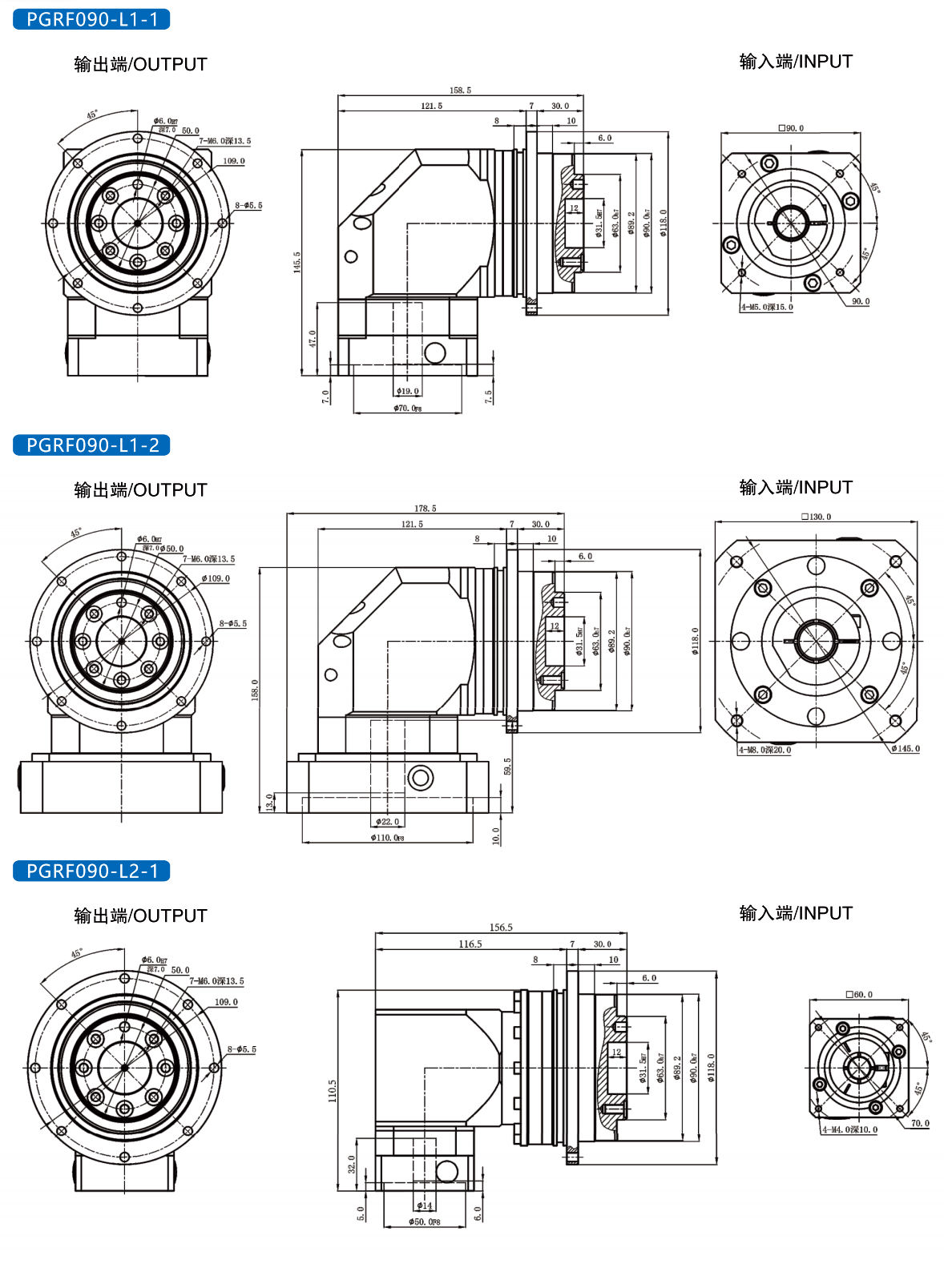

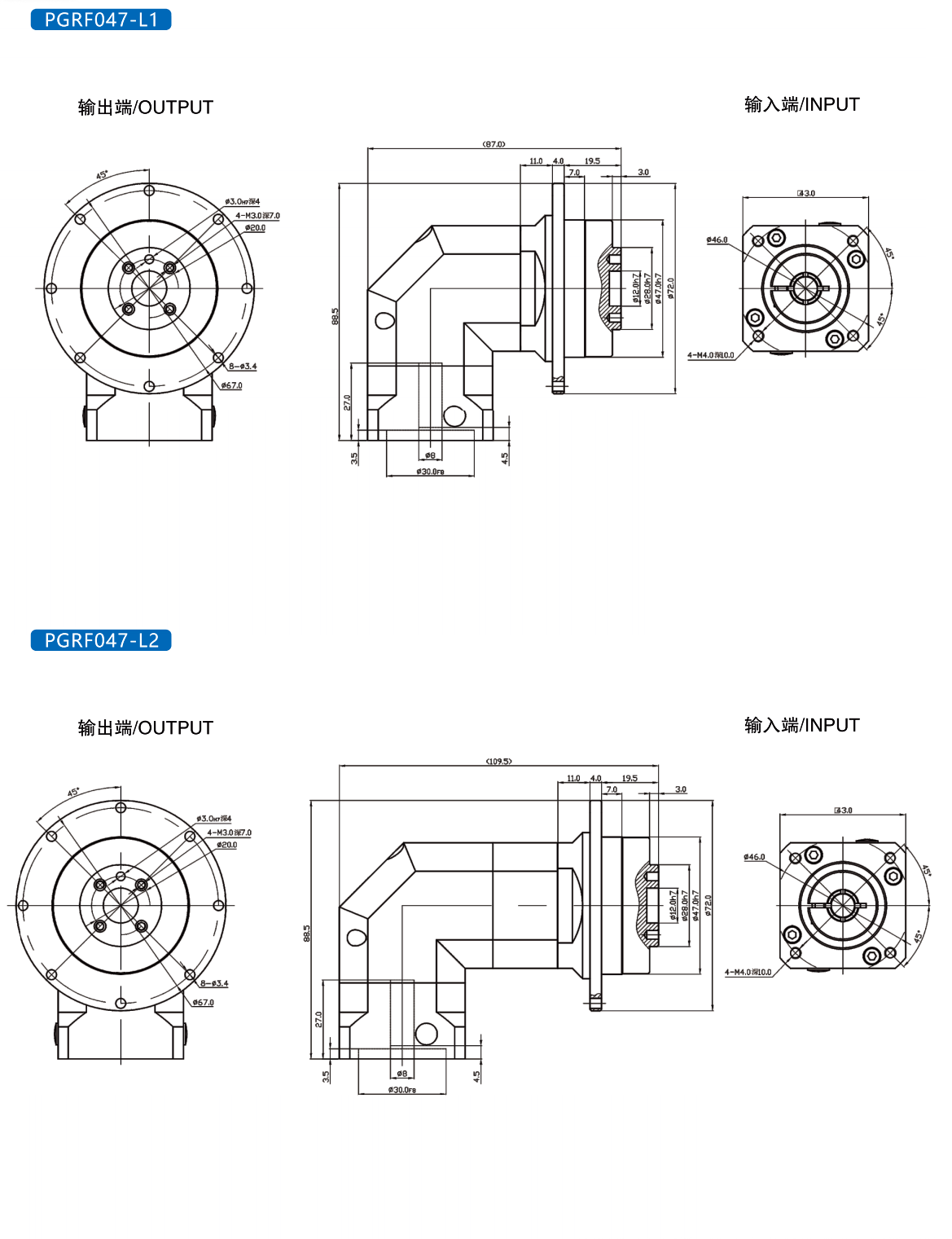

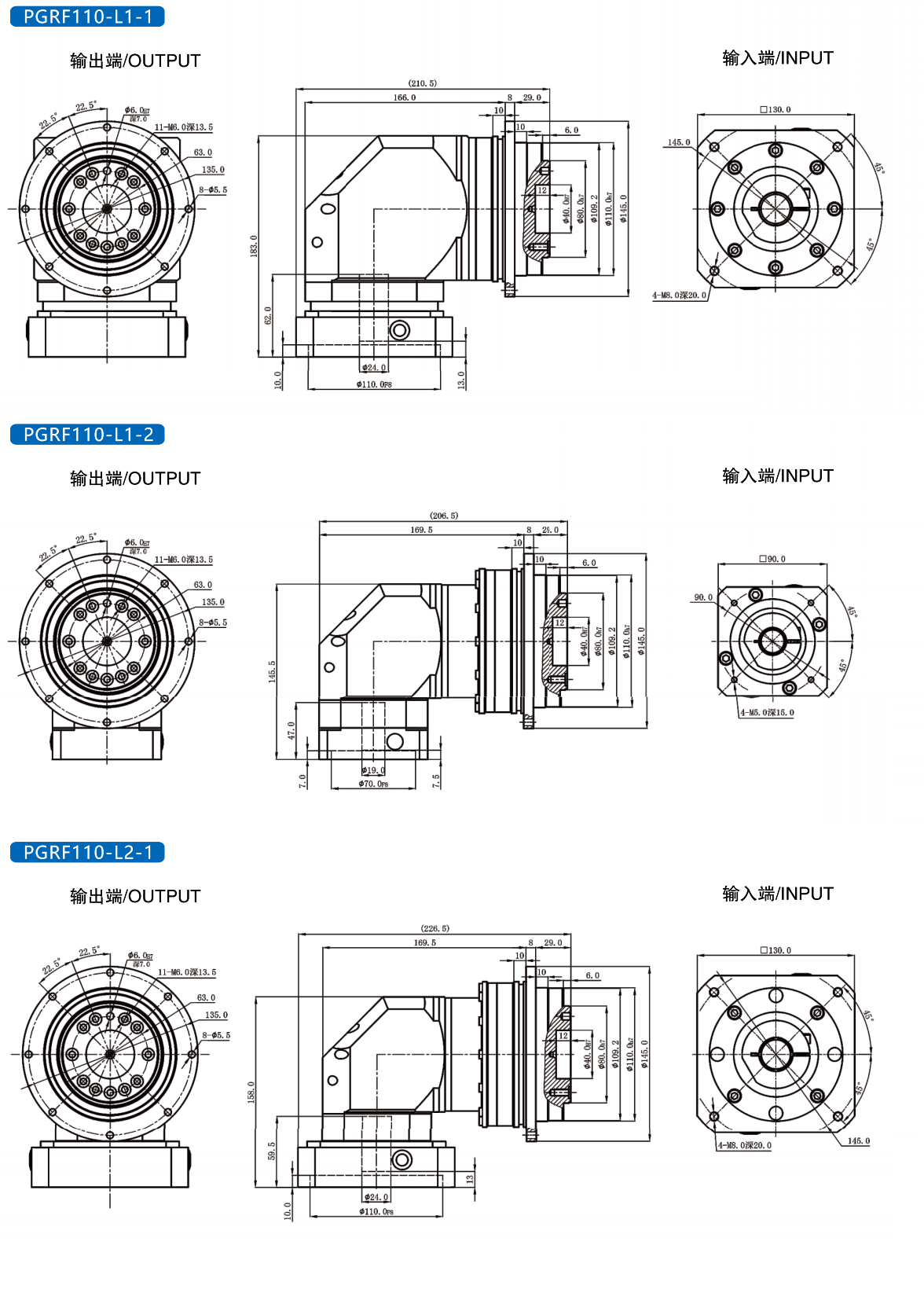

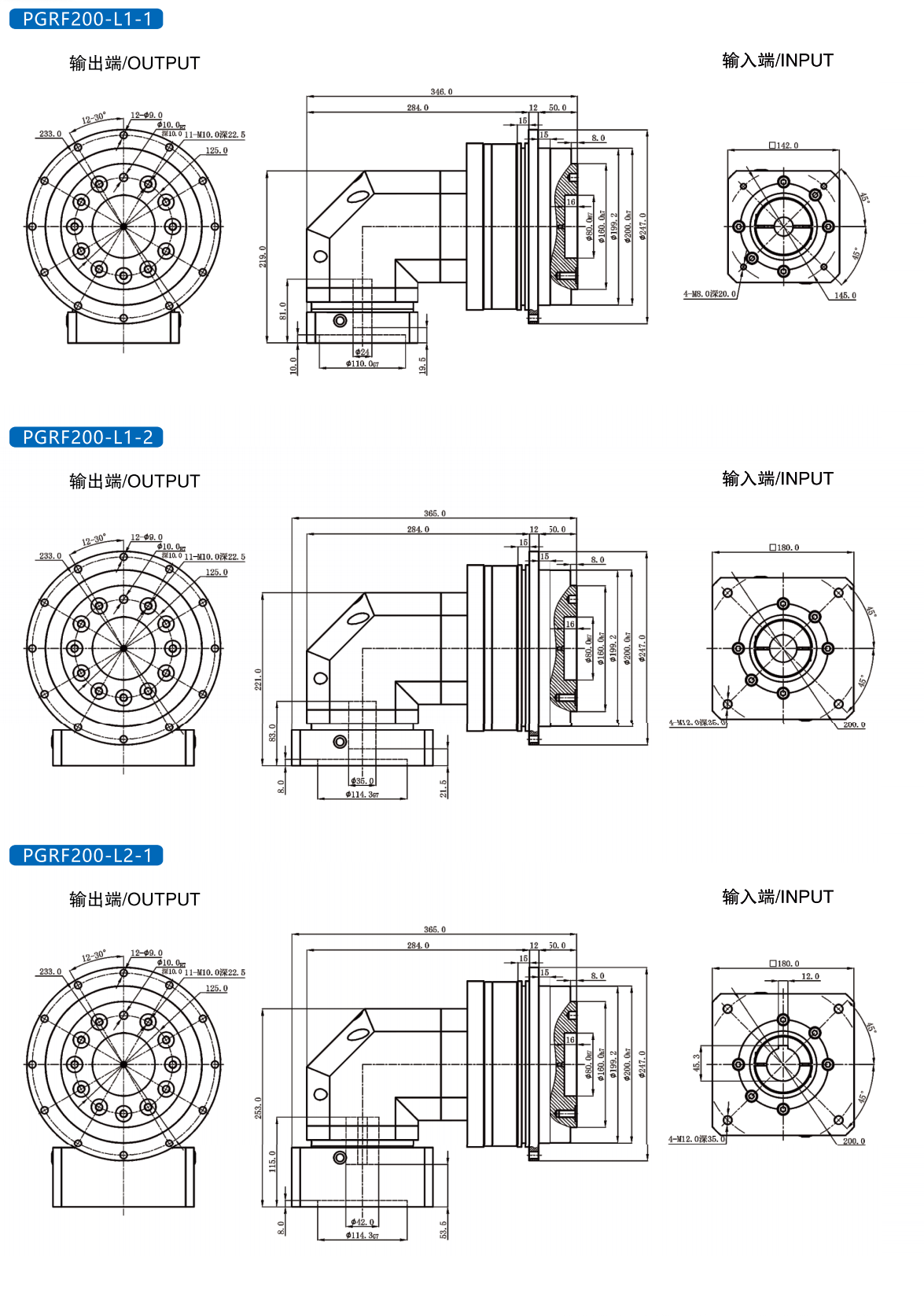

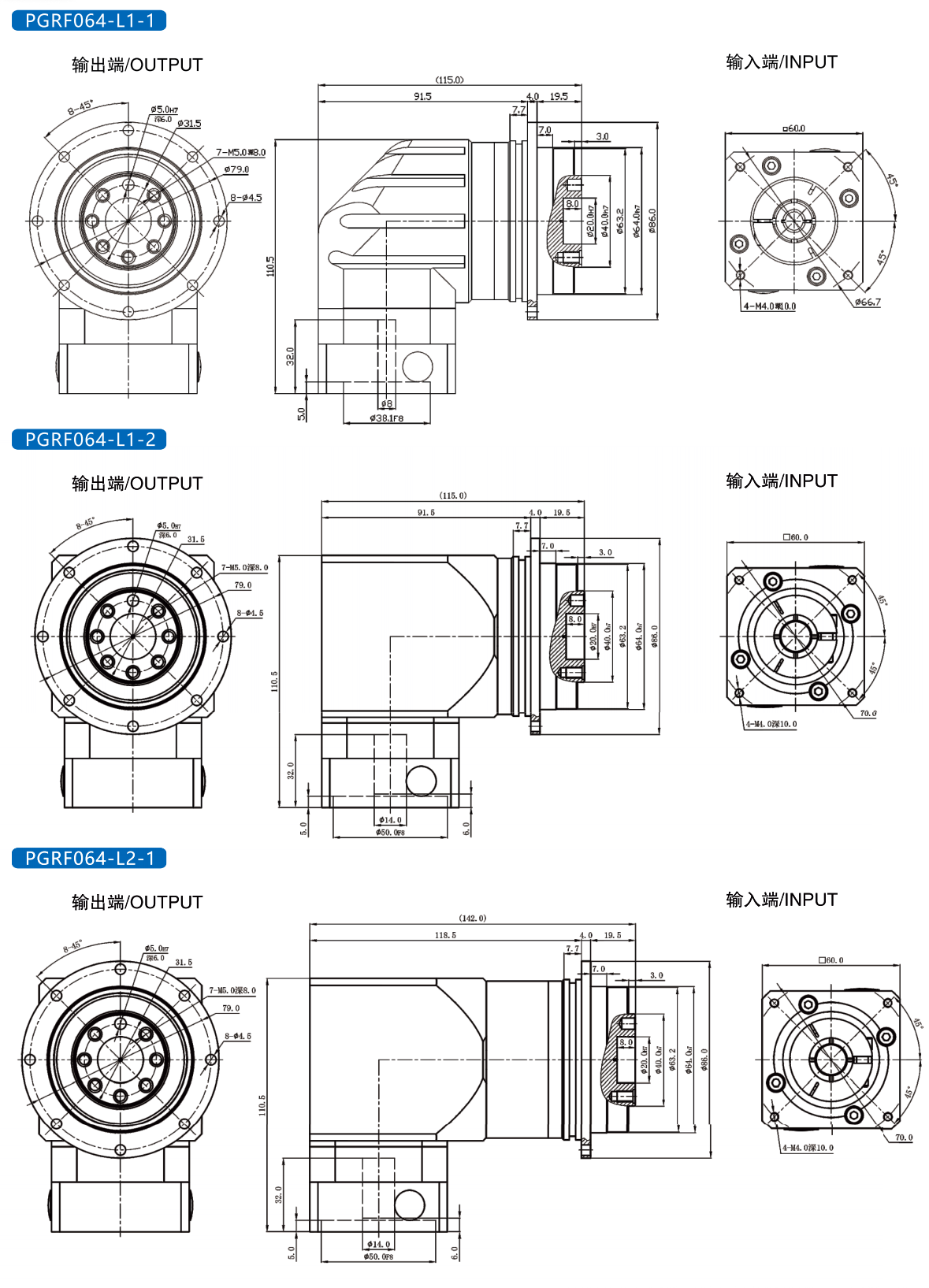

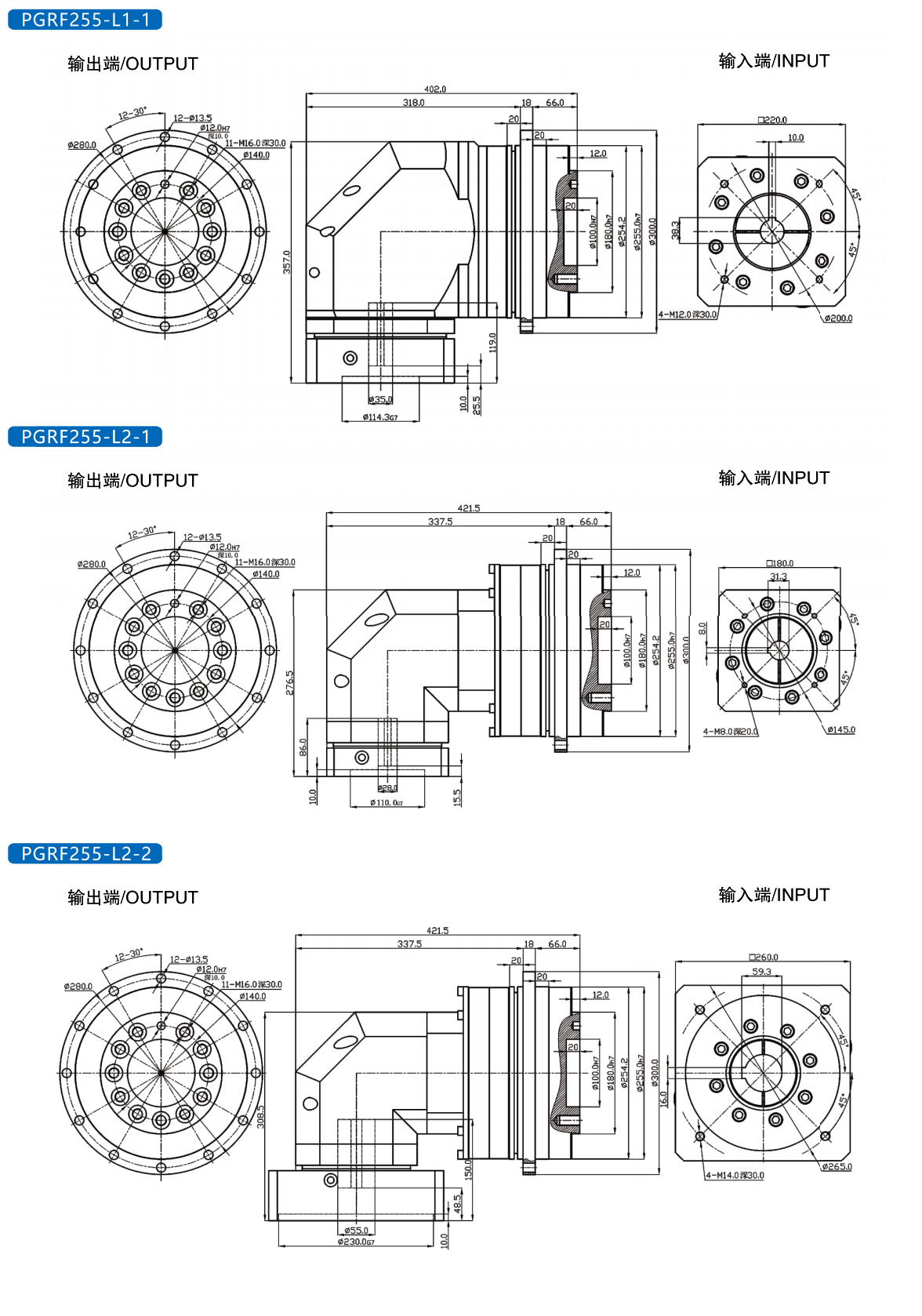

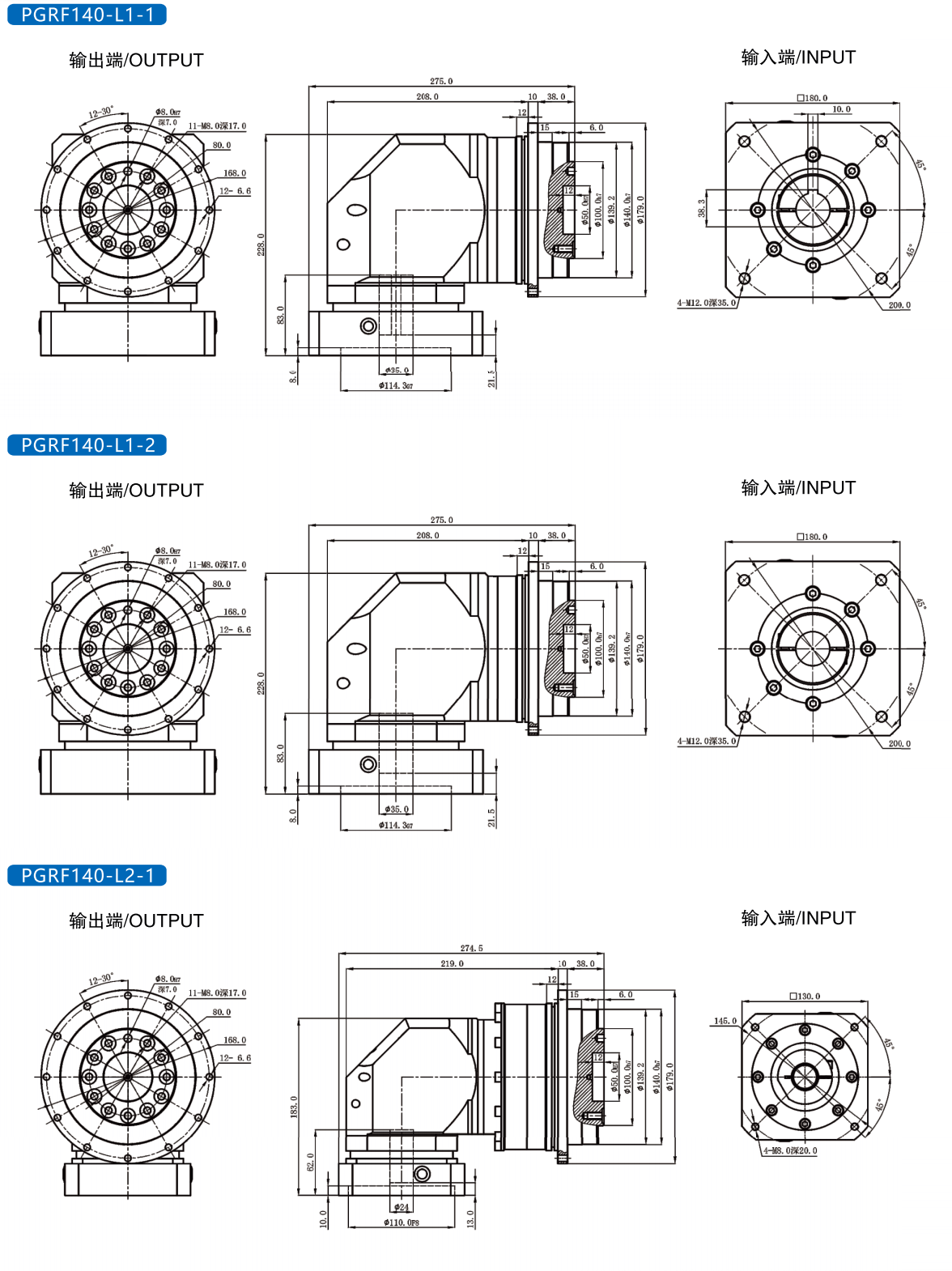

We check motor and output connection dimensions against the approved drawing. Locating features, fasteners and surrounding support all contribute to the installed result. We want the mechanical connection to support the precision expected from the drive.

5. Where We Review the PGRF Reducer for Industrial Applications

Packaging machinery and product transfer

We consider the PGRF reducer for suitable feeding, indexing and transfer axes. We ask about product spacing, movement time and any resistance during sealing, cutting or handling. For a precision gearbox for packaging equipment, the demanding moment may occur during a short part of the cycle.

We also review product changes. A line running a light package at high speed may later handle a heavier package with different tooling. We want the selection to reflect the intended operating cases rather than an average package weight.

Printing and coordinated production equipment

We examine the relationship between the driven section and neighbouring axes. Speed changes, reversals and the required working position all matter. We include external belts, couplings and rollers in the discussion because they form part of the motion path.

Automated assembly and handling

We review rotary fixtures, transfer stations and suitable handling mechanisms by considering where the payload sits. Moving a load farther from an axis changes the inertia and external forces. A drawing showing the fixture and part helps us assess those effects.

CNC equipment and auxiliary axes

For appropriate positioning or auxiliary mechanisms, we check the working force as well as the movement. We ask whether the axis must hold position while another operation applies a load. We also review the transmission between the reducer and the working point.

Conveyors and logistics systems

We review roller size, transport speed, starting resistance and repeated stops. We ask about accumulation and blockage conditions separately from normal travel. Where pulleys or sprockets load the gearbox connection, we check their position and the applied forces.

Across these uses, we confirm the environment. Dust, moisture, cleaning chemicals, temperature and mounting orientation can affect the required configuration. We discuss those conditions before recommending a PGRF Planetary Gear Reducer for industrial automation.

6. How We Support Gearbox Quality Through Manufacturing

At HOAJEAR, we support gearbox design and production with machining and measurement equipment. Our resources include the Kashifuji KPS30 gear skiving machine, HAMA IN60 gear hobbing machine and DMG machining centers. We also have an HT-350 gear inspection system, backlash testing equipment and a GLOBAL coordinate measuring machine.

We use these resources for different parts of the manufacturing task. Tooth geometry matters, while housing dimensions, bearing locations and mounting relationships help determine how the parts work together. Precision depends on the assembly as well as the individual gear.

During technical review, we identify the connection dimensions that matter to your equipment. We use the confirmed drawing to define motor locating features, mounting arrangements and the output interface. This keeps the installation requirement clear during production.

For component materials, heat treatment and finishing, we follow the selected design and applicable production documents. We discuss special requirements before manufacture so they can be reviewed with the configuration, quantity and schedule.

Gear inspection supports checks of tooth features. Coordinate measurement supports dimensional inspection, and backlash testing addresses clearance in the assembled transmission under defined conditions. Where customers require particular records, we agree on the inspection scope during quotation.

Delivery acceptance follows the drawings and technical agreement confirmed by both parties. We check the specified ratio, backlash, installation dimensions and running condition. Additional measurements or records can be discussed before the order is released.

We make inspection requirements specific enough to be useful. If a customer needs a dimensional report, we agree which features it must cover. If the project needs a backlash record, we define the measurement conditions. This helps us provide documentation that answers the customer's acceptance question rather than adding paperwork without a clear purpose.

For repeat production, we recommend keeping the complete model code and approved drawing revision with the machine records. We then have a consistent reference for later orders. If the motor or load connection changes, we review the effect before continuing with the earlier selection.

7. What We Confirm Before Production and Shipment

We can prepare a useful PGRF gearbox quotation when we receive the motor model, required output speed, torque requirement and movement cycle. Please include available space, output connection details and a drawing of the load arrangement.

For motor compatibility, we check shaft diameter and length, locating pilot, flange dimensions and fastening access. We also compare the proposed input speed and torque with the selected configuration. Motor power alone cannot establish either the mechanical fit or the operating suitability.

During installation planning, we recommend clean mating surfaces and the alignment and fastening method in the applicable instructions. We avoid using bolts to pull a misaligned connection into position. Output parts should be fitted using the specified method without striking the gearbox.

We confirm the lubrication method and service instructions for the selected configuration. Please tell us about unusual temperatures, cleaning exposure or extended storage before ordering. During service, we recommend following the supplied instructions and recording any change in sound, temperature or leakage so the operating conditions can be reviewed with the observed change.

We recommend a controlled commissioning trial before full production. We check direction, speed, sound, vibration and temperature behaviour as the working load is introduced. For positioning axes, we compare movement from both directions after confirming the mechanical installation.

For future comparison, we recommend recording the initial load, speed, direction and temperature observation point. Repeat observations under similar conditions are easier to interpret. If behaviour changes after a motor replacement or tooling adjustment, please share those details with us. We can then discuss a focused check of the installation, control settings and gearbox assembly. We keep the approved configuration with these records. This gives engineering and purchasing a shared reference when another machine needs the same drive arrangement in production.

Our production schedule depends on the model, quantity, stock availability and custom requirements. The delivery date follows the contract. Payment can include an agreed advance and the remaining balance before shipment, with the final arrangement recorded in the order documents.

We choose courier, road transport, sea freight or air freight according to shipment volume and timing. Packaging uses rust and moisture protection, cushioning and secure fixing. We select cartons or wooden cases to suit the shipment and confirm any special requirements before dispatch.

When comparing quotations, we recommend checking the included adapters, output connection, inspection scope and packaging. We also confirm the drawing revision so the offer describes the same supply that your assembly team expects to receive.

8. Questions We Answer Before You Choose HOAJEAR

Can we match the PGRF reducer to an existing servo motor?

We review the complete motor drawing and operating range against the proposed gearbox. We confirm the connection dimensions, required adapter and input conditions before accepting compatibility. Please include the full motor model when sending your enquiry.

Does high precision mean zero backlash?

We specify backlash for the selected model and agreed test conditions. We also consider stiffness, mounting and the measuring point when discussing the complete machine. The product name alone cannot define the final positioning result.

Can we select a reducer using only load weight?

We also need load position, movement time, speed and the mechanism arrangement. The same mass can create different demands when carried near an axis, placed on a long arm or moved through a conveyor transmission.

Can we use the gearbox continuously?

We assess continuous duty against the selected configuration, speed, torque and heat dissipation conditions. Repeated acceleration and reversal also need review. We confirm the intended operation before recommending the gearbox for that duty.

Can we review a custom mounting connection?

We review custom requests against design feasibility, quantity and production requirements. Please send a dimensioned drawing. We confirm the accepted design, price and schedule before manufacture, including any effect on the proposed configuration.

Why work with us on a PGRF gearbox project?

We combine planetary gearbox design, manufacturing and inspection resources with a practical selection process. We connect the motor, load and installation requirements, then define the supply through approved technical documents. We want the gearbox to be straightforward to purchase, assemble and verify.

Send us your motor drawing, output speed, load arrangement and movement cycle. We will review the PGRF High Precision Helical Gear Reducer configuration with you and prepare a quotation based on the confirmed requirements of your equipment.
